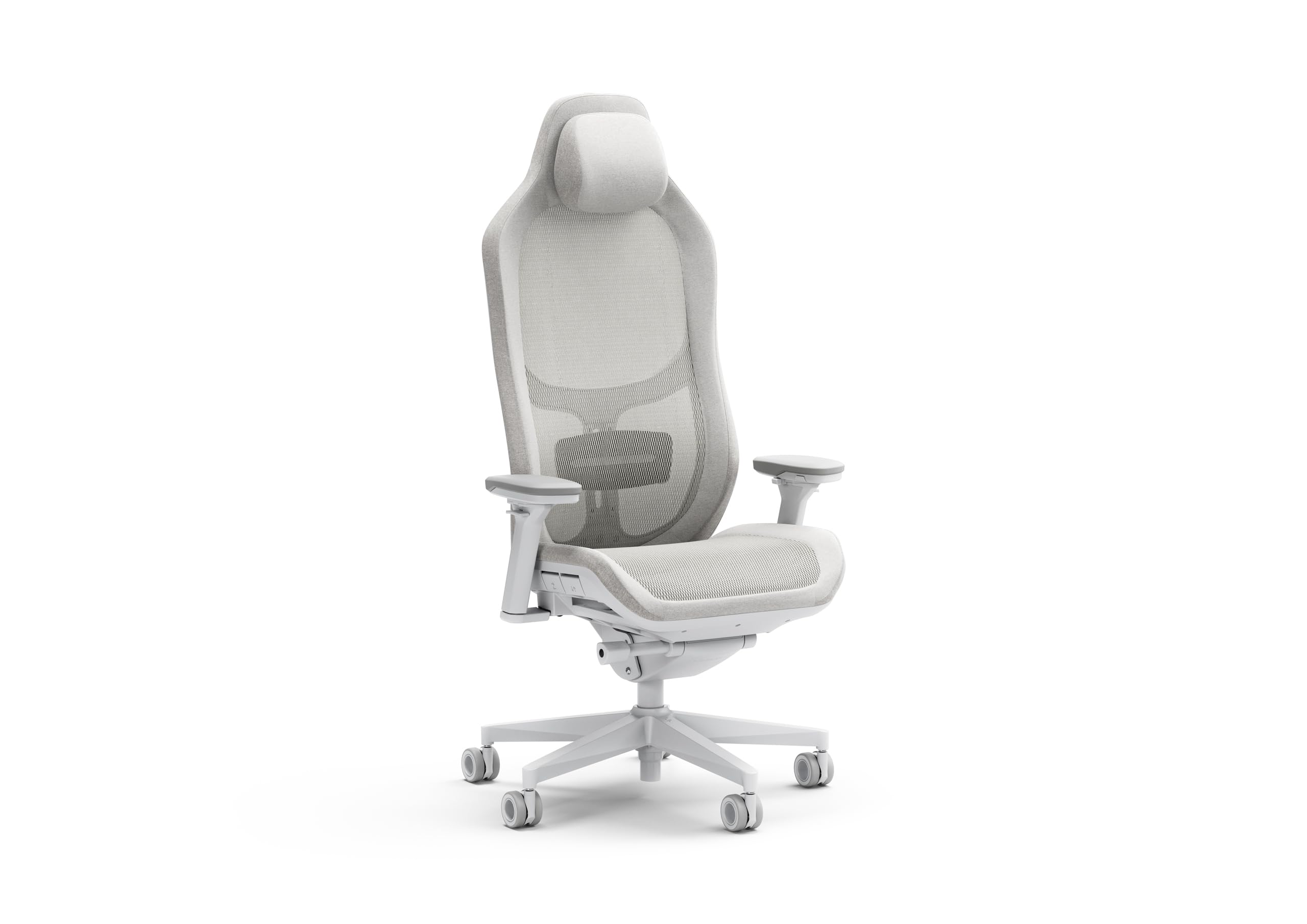

Fractal Design Refine, Mesh Light

Materials & Build

• Frame: Glass fiber reinforced (20–30%) PP/PA

• Seat: Cold cured foam (Mesh: Mesh)

• Back: Cold cured foam (Mesh: Mesh)

• Headrest: Memory foam

• Wheelbase: Aluminum

• Casters: Hubless 65 mm, soft PU wheels

• Gas Lift: 120 mm Class 4

• Mechanism: Synchro-tilt (Donati Dynamic)

• Armrests: Plastic cover with aluminum mechanism and steel bracket

• Arm Caps: Soft PU foam with TPU cover

• Lumbar Support: Height and depth adjustable

• Upholstery Options:

  • Mesh: Nylon reinforced mesh

  • Fabric: Woven non-organic fabric

  • Alcantara®: Alcantara®

Adjustability

• Seat Height: 475–595 mm (Mesh: 490–610 mm)

• Seat Depth: 425–480 mm (Mesh: 450–505 mm)

• Armrest Height (from seat): 160–270 mm (Mesh: 145–255 mm)

• Armrest Width (between): 420–560 mm (Mesh: 430–560 mm)

• Armrest Rotation: ±15°

• Armrest Depth Adjustment: 60 mm

• Lumbar Height Adjustment: 110 mm

• Lumbar Depth Adjustment: 20 mm

• Max Back Tilt: 125° (~130° under load)

• Back/Seat Tilt Ratio: 2:1

• Lockable Tilt Positions: 11

• Free Tilt: Yes

• Headrest Height Adjustment: 120 mm

Dimensions

• Headrest (W×D×H): 210 × 80 × 185 mm

• Lumbar Pad (H×W): 110 × 260 mm

• Seat Width: 540 mm (Mesh: 550 mm)

• Seat Depth: 460 mm (Mesh: 465 mm)

• Seat Width (between seams): 435 mm

• Back Height (from floor): 1340–1465 mm

• Back Height (from seat): 875 mm (Mesh: 860 mm)

• Back Width: 530 mm

• Arm Cap Size: 250 × 110 mm

• Caster Size: 65 mm

• Wheelbase Diameter: 700 mm

General Information

• Certifications: BIFMA X5.1, EN1335-1, BS5852 / CAL TB117, EN1021-1/-2

• Weight Capacity: 125 kg

• Recommended User Height: 165–200 cm

• Recommended User Weight: 60–125 kg

• Net Weight: 25.7 kg (Alcantara®: 25.8 kg)

• Gross Weight: 35.7 kg (Alcantara®: 35.8 kg)

• Warranty:

  • 5 years (mechanical parts)

  • 3 years (upholstery & materials)

Packaging

• Box Dimensions (L×W×H): 107 × 68 × 39 cm

Included in Box:

• Seat base with synchro-tilt mechanism

• Backrest with built-in lumbar support

• Wheelbase

• Headrest

• Large Accessory Box

• Quick Start Guide

• Designer’s Note
